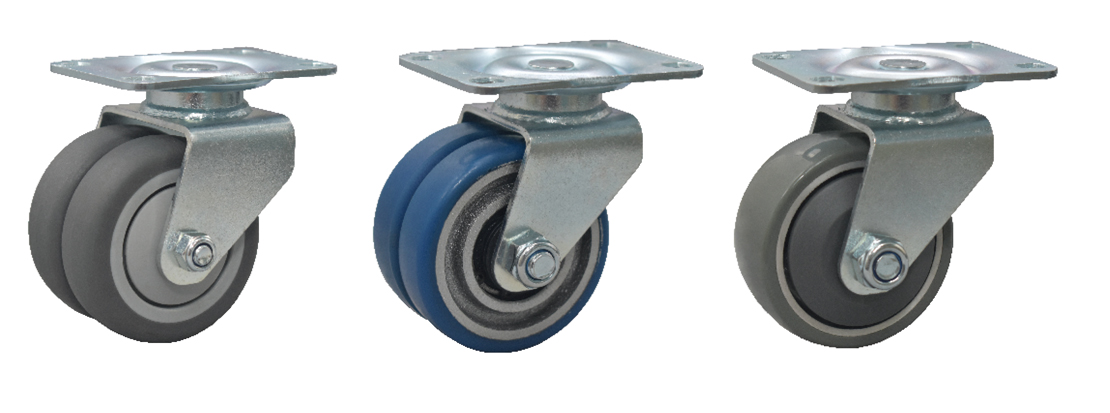

AMR/AGV-4 單精密軸承活動腳輪系列(中型)

AMR/AGV-4 Single Precision Ball Bearing Caster (Medium Duty)

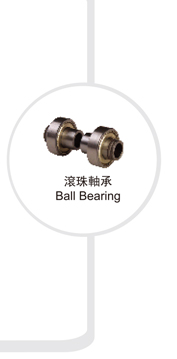

採用精密軸承，來應對 AMR/AGV 需求的複雜環境：耐久，長距離運行，防塵等特點；適用於中等載荷 AMR/AGV 用。

With Single precision ball bearing embedded in the caster fork, this AMR/AGV-4 caster offer durability, dust-prevention and extended service life, compared to traditional stamping fabrication caster. AMR/AGV-4 caster is suitable for light and medium duty AMR/AGVs.

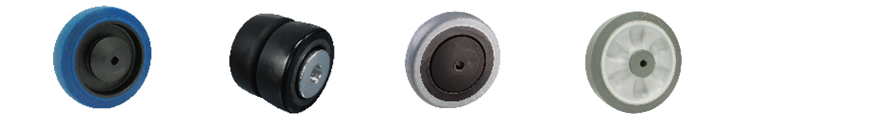

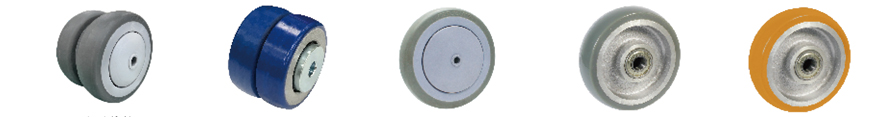

全效雙輪
Resolute(Dual Wheels)

ZQPU雙輪
ZQPU
(Dual Wheels)

全效輪(小弧)
Resolute Rubber Wheel
(Crown Surface)

鋁芯AQPU
QPU on AL Core

鋁芯AHPU
HPU on AL Core

藍色彈力全效輪
Blue Resilient
Resolute Rubber

ZQPU輪(抗靜電)
QPU(Dual Anti-Static Wheels)

導電輪(小弧)
E-Conductive
(Crown Surface)

W 全效輪(平面)
W Resolute
(Flat Surface

*有其它抗靜電輪可供選擇，如有需求請聯絡工廠

*Other Anti-Statuc Wheels Available, Please Contact The Factory

編號 Suffix	底板尺寸 Top Plate Size	底板孔距 Bolt Hole Spacing	安裝尼帽尺寸 Attaching Bolt Size
2", 2.5", 3", 4", 5"	66 x 92 mm (2-3/8" x 3-5/8")	45 x 75 mm (1-3/4" x 3")	6.35 mm (1/4")
2", 2.5", 3", 4", 5"	76 x 103 mm (3" x 4-1/16")	60 x 80 mm (2-3/8" x 3-1/8")	6.35 mm (1/4")


			固定 Fixed	活動 Swivel	煞車 Brake
50mm x 22.5mm(48.5) (2" x 7/8")	60 kgs (132 lbs)	全效雙輪 Resolute (Dual Wheels)	1165-02-68D-1(4)	1165-02-68D-2(4)	—	滾珠軸承 Ball Bearing	72mm (2-7/8")	47mm (1-7/8")
50mm x 20mm (2" x 3/4")	70 kgs (154 lbs)	ZQPU輪 ZQPU(Dual Wheels)	1165-02-101-1(4)	1165-02-101-2(4)	—
50mm x 20mm (2" x 3/4")	70 kgs (154 lbs)	ZQPU輪(抗靜電) ZQPU(Dual Anti-Static Wheels)	1165-02-101-1(4)	1165-02-101-2(4)	—
62.5mm x 23.5mm(50.5) (2-1/2" x 15/16")	80 kgs (176 lbs)	全效雙輪 Resolute (Dual Wheels)	1165-25-68D-1(4)	1165-25-68D-2(4)	—	滾珠軸承 Ball Bearing	85mm (3-1/4")	56mm (2-1/4")
62.5mm x 20mm (2-1/2" x 3/4")	200 kgs (440 lbs)	ZQPU輪 ZQPU(Dual Wheels)	1165-25-101-1(4)	1165-25-101-2(4)	—
62.5mm x 20mm (2-1/2" x 3/4")	150 kgs (330 lbs)	ZQPU輪(抗靜電) ZQPU(Dual Anti-Static Wheels)	1165-25-101-1(4)	1165-25-101-2(4)	—
62.5mm x 30mm (2-1/2" x 1-1/8")	120 kgs (264 lbs)	鋁芯AHPU HPU on AL Core	1165-25-117-1(4)	1165-25-117-2(4)	—
62.5mm x 23.5mm (2-1/2" x 15/16")	50 kgs (110 lbs)	全效輪 Resolute Rubber Wheel	1165-25-68-1(4)	1165-25-68-2(4)	—			52.5mm (2-1/8")
62.5mm x 23.5mm (2-1/2" x 15/16")	35 kgs (77 lbs)	導電輪 E-Conductive	1165-25-17-1(4)	1165-25-17-2(4)	—			52.5mm (2-1/8")
75mm x 24mm(51) (3" x 15/16")	90 kgs (198 lbs)	全效雙輪 Resolute (Dual Wheels)	1165-03-68D-1(4)	1165-03-68D-2(4)	—	滾珠軸承 Ball Bearing	98mm (3-7/8")	63.5mm (2-1/2")
75mm x 20mm (3" x 15/16")	200 kgs (440 lbs)	ZQPU輪 ZQPU(Dual Wheels)	1165-03-101-1(4)	1165-03-101-2(4)	—
75mm x 20mm (3" x 15/16")	150 kgs (330 lbs)	ZQPU輪(抗靜電) ZQPU(Dual Anti-Static Wheels)	1165-03-101-1(4)	1165-03-101-2(4)	—
75mm x 31mm (3" x 1-1/4")	90 kgs (198 lbs)	全效輪 Resolute Rubber Wheel	1165-03-68-1(4)	1165-03-68-2(4)	—			62mm (2-1/2")
	60 kgs (132 lbs)	導電輪 E-Conductive	1165-03-101-1(3)	1165-03-101-2(3)	—
	100 kgs (220 lbs)	W 全效輪 W Resolute	1165-03-48-1(4)	1165-03-48-2(4)	—
75mm x 30mm (3" x 1-1/8")	150 kgs (330 lbs)	鋁芯AQPU QPU on AL Core	1165-03-87-1(4)	1165-03-87-2(4)	—
100mm x 24.5mm(51.5) (4" x 15/16")	120 kgs (264 lbs)	全效雙輪 Resolute (Dual Wheels)	1165-04-68D-1(4)	1165-04-68D-2(4)	—	滾珠軸承 Ball Bearing	125mm (4-7/8")	85mm (3-3/8")
100mm x 34mm (4" x 1-3/8")	110 kgs (242 lbs)	藍色彈力全效輪 Blue Resilient Resolute Rubber	1165-04-50-1(4)	1165-04-50-2(4)	—
100mm x 31mm (4" x 1-1/4")	80 kgs (196 lbs)	W 全效輪 W Resolute	1165-04-48-1(4)	1165-04-48-2(4)	—
100mm x 31mm (4" x 1-1/4")	200 kgs (440 lbs)	鋁芯AQPU QPU on AL Core	1165-04-87-1(4)	1165-04-87-2(4)	—
125mm x 24.5mm(51.5) (5" x 15/16")	130 kgs (286 lbs)	全效雙輪 Resolute (Dual Wheels)	1165-05-68D-1(4)	1165-05-68D-2(4)	—	滾珠軸承 Ball Bearing	150mm (5-7/8")	101.5mm (4")
125mm x 36mm (5" x 1-3/8")	130 kgs (286 lbs)	藍色彈力全效輪 Blue Resilient Resolute Rubber	1165-05-50-1(4)	1165-05-50-2(4)	—
125mm x 31mm (5" x 1-1/4")	100 kgs (220 lbs)	W 全效輪 W Resolute	1165-05-48-1(4)	1165-05-48-2(4)	—
125mm x 31mm (5" x 1-1/4")	200 kgs (440 lbs)	鋁芯AQPU QPU on AL Core	1165-05-87-1(4)	1165-05-87-2(4)	—
